Self Adhesive Pvdf Film Butyl Rubber Waterproof Tape
Description
PVDF fluorocarbon membrane butyl tape: exposed PVDF membrane butyl rubber self-adhesive waterproofing roll-roofing is ageing-resistant PVDF fluorocarbon membrane for the surface of the main waterproofing layer, can be a long time exposed to sunlight and air but not easy to oxidize, has excellent weather resistance, can resist the long-term ultraviolet rays, acid rain, wind and sand and other factors of the natural environment, is not easy to fade, aging, chalking or cracking, lt is suitable for all kinds of outdoor environments with a waterproof durability of more than 20 years.Belongs to the butyl tape in the high-end products, this product is only for the has a very high life expectancy requirements of customers.
Product Standard
|
Product thickness: |
0.9/1.0mm/1.2mm/1.5mm |
|
Product width: |
5cm/7.5cm/10cm*15cm/20cm/50cm/100cm(all can be customized) |
|
Product length: |
5m/10m(can be customized) |
Basic Composition
|
Surface Material: |
PVDF fluorocarbon film |
|
Substrate color: |
blue, white, grey (all can be customized) |
|
Intermediate colloid: |
adopts highly reactive butyl mixing and refining rubber |
|
Backside substrate: |
PE isolation film (white, grey are available) |
Properties of Products
|
Serial oamber |
Inspection ltem |
Indicator |
Detection Basis |
Inspection Result |
||
|
1 |
Density |
1.5±0.05 |
GB/T533-2008 |
1.5 |
||
|
2 |
Min Persistent Adhesion, min |
≥20 |
Butyl Rubber Waterproof Sealing Adhesive Tape 7.7 of JC/T 942 - 2022
|
30 |
||
|
3 |
Temperature Initial Tack (5℃,No. 32Steel Ball) |
Pass |
Butyl Rubber Waterproof Sealing Adhesive Tape 7.8 of JC/T 942 - 2022 |
Pass |
||
|
4 |
100℃，2hHeat Resistance,100℃,2h |
Slippage,dripping, deformation |
Butyl Rubber Waterproof Sealing Adhesive Tape 7.8 of JC/T 942 - 2022 | No
slippage, dripping, deformation |
||
|
5 |
N/mm
Peel Strength N/mm |
Standard
Conditions |
Cement Board |
≥0.8
|
Butyl Rubber
Waterproof Sealing Adhesive Tape 7.11 of JC/T 942 - 2022
|
1.3 |
|
Metal Plate |
1.1 |
|||||
| Heat
Treatment 80°C 168h |
Cement Board |
≥0.6
|
1.3 |
|||
|
Metal Plate |
1.2 |
|||||
|
168hAlkaliTreatme nt, Saturated Calcium Hydroxide Solution for 168h |
Cement Board |
≥0.6
|
1.2 |
|||
|
Metal Plate |
1.4 |
|||||
| 168h Immersion
Treatment for 168h |
Cement
Board |
≥0.6
|
1.6 |
|||
| Metal
Plate |
1.1 |
|||||
Wide range of application scenarios

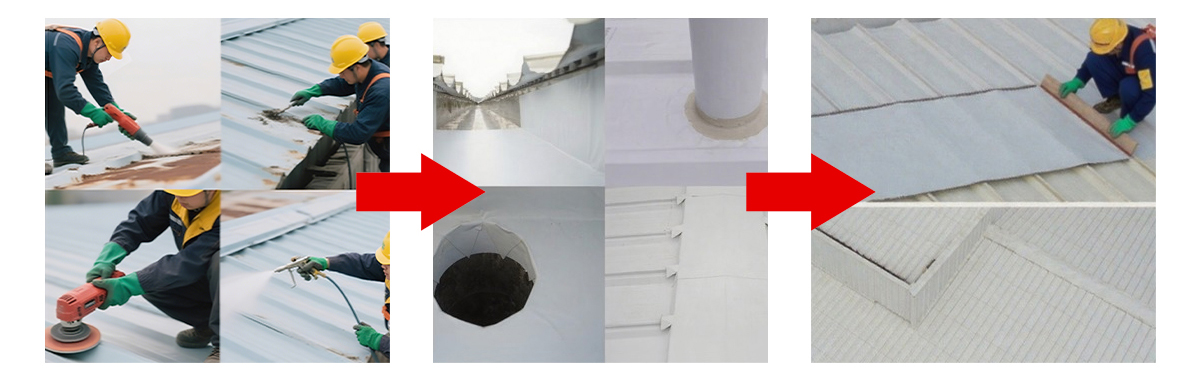

How to use
1.Clean the base surface
Rust removal and rust fixation are performed on the base surface to ensure a better integration of the protective film and the base layer.
1. Rust removal and rust fixation:Clean the base surface until it is clean, dry, and free of oil, dust, and other loose materials.lf rust is present on the base surface, spray a special base treatment agent and remove the rusted areas. Repair any rusted areas.
2. Clean the gutters to ensure smooth drainage. lf rust damage is severe, replace the entire roof.
3. Correct or replace severely deformed metal tiles.
2.Node reinforcement
Strengthen weak points to provide additional protection for detailed joints.
Reinforcement was applied to detailed joints such as the ridge flashing, tile joints, eaves, gutters,fan bases, and skylights.

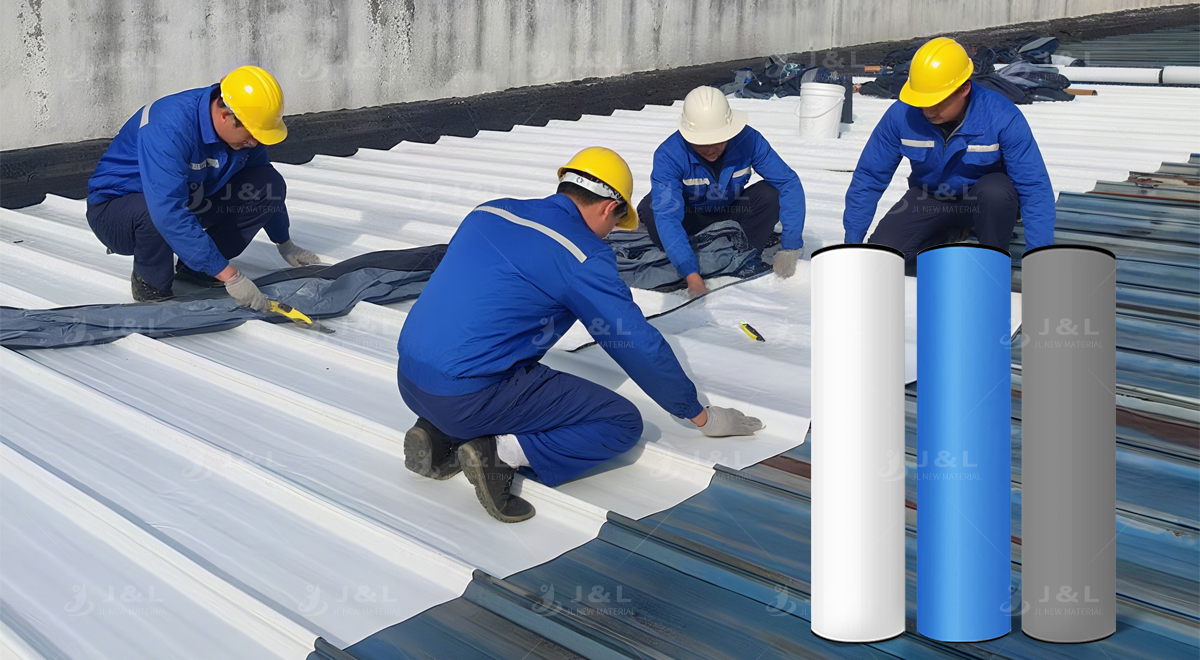

3.Large area paving
Large-surface installation is simple.blending seamlessly with the base surface to create a continuous seal.
1.Apply the tiles parallel to the ridge(eaves) from low to high.
2.The film can be removed while installing the tiles. The protective film should adhere tightly to the base surface.
3.Overlap joints should follow the direction of water flow, with a minimum overlap width of 30mm.
Certificate
Company information
NanTong JULI New Material Technology Co., Ltd is professional manufacturer of butyl sealing tape, butyl rubber tape ,butyl sealant, butyl sound deadening , butyl waterproof membrane, vacuum consumables , in China. JULI New Material products are widely used in automotive, new energy, electronic communications, electricity, construction, container ,and many other industrial.
Backed by good research and development (“R&D”) capabilities, J&L New Material has developed abroad range of butyl specialty tapes .Butyl flame retardant tape, PVDF butyl waterproof membrane, TPO butyl waterproof membrane , HDPE butyl waterproof membrane ,Aluminum foil butyl waterproof membrane and so on. J&L New Material has international advanced production and has advanced automated production lines to ensure the stability of the products produced, the production efficiency is fast, the precision is high, and the first-class products are improved by optimizing the process, creating a first-class enterprise and a tree industry brand.

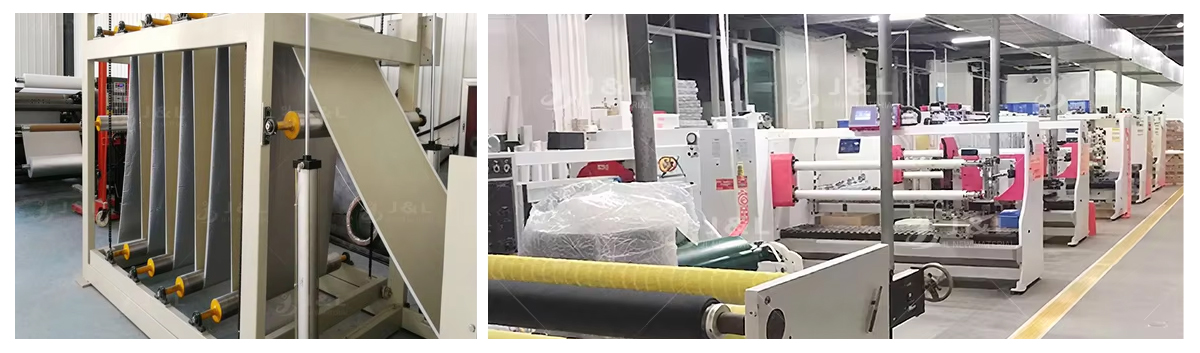

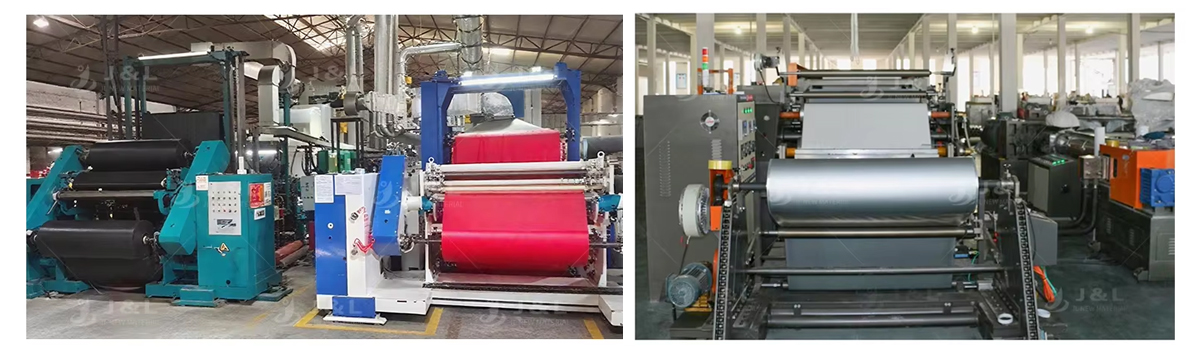

Advanced automated production line, efficient and stable production capacity
The company has introduced an internationally advanced butyl rubber product production line, equipped with a fully automatic coating machine, precision slitting equipment and an intelligent temperature control system to ensure uniform product thickness and stable viscosity. The daily production capacity reaches 10,000 square meters to meet the needs of large-volume orders.

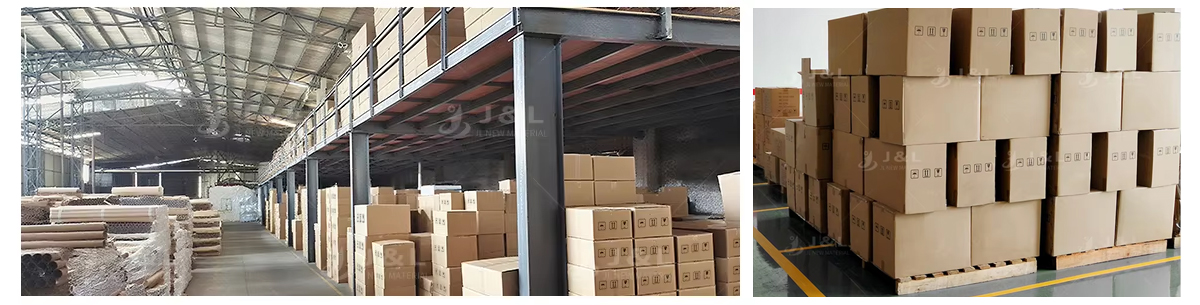

Large storage base, sufficient stock
We have built our own 10,000 square meter storage center, which has a regular inventory of over 500,000 rolls of butyl tapes, waterproof membranes, sound insulation films, and other products, supporting fast delivery and meeting customers' urgent needs.
Professional customization capabilities and quick response
We have built our own 10,000 square meter storage center, which has a regular inventory of over 500,000 rolls of butyl tapes, waterproof membranes, sound insulation films, and other products, supporting fast delivery and meeting customers' urgent needs.
20 years of deep cultivation in the industry and rich technical experience
We have been focusing on the butyl rubber field for 20 years, serving thousands of customers, providing customized services and worry-free after-sales service.
Packaging&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your terms of packing?
A:Generally,we pack our goods in box.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authori- zation letters.
Q: How long is your delivery time?
A:If order quantity is small,then 7-10 days,Large quantity order 25-30 days.
Q:Can you provide a free sample?
A:Yes,1-2 pcs samples are free,but you pay the shipping charge.
You also can provide your DHL,TNT account number.
Q:How many workers you have?
A:We have 400 workers.
Q:How many production lines you have?
A:We have 200 production lines.
