OEM Low-resistivity Non-vulcanizing Electrical Semi-Conducting Tape
Description

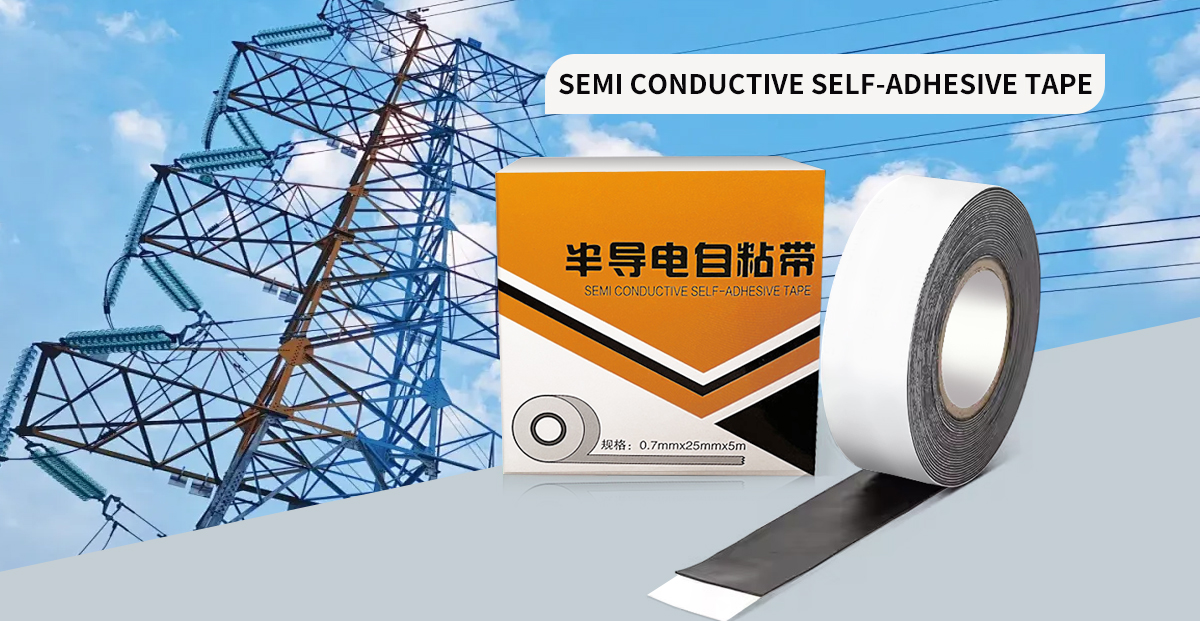

Semi-conductive tape is a highly conformable, semi-conductive tape that maintains stable conductivity when stretched. The tape is compatible with most solid dielectric cable insulation and conductors, providing excellent shielding, especially for joint protection of solid insulated power cables.
This product is a non-vulcanized tape with excellent storage stability and stable conductivity over a wide temperature range. Its high ductility allows it to easily conform to irregular shapes to ensure a tight wrap. With an EPDM backing, the tape can effectively homogenize the electric field distribution at high-voltage connections and bond tightly to the insulation material, significantly reducing local electrical stress. With an operating temperature of up to 90°C (194°F), it is an excellent choice for cable maintenance and power shielding applications.
Features
— No need for vulcanization, wide operating temperature range and stable performance.
— It has low resistivity and can maintain good conductivity under stretching.
Specifications and packaging
|
NO. |
Specification(mm) |
Package |
|
1 |
0.76*19*1000 |
Paper box/heat shrink film |
|
2 |
0.76*19*3000 |
Paper box/heat shrink film |
|
3 |
0.76*19*5000 |
Paper box/heat shrink film |
|
4 |
0.76*25*5000 |
Paper box/heat shrink film |
|
5 |
0.76*50*5000 |
Paper box/heat shrink film |
|
Specifications can be provided according to customer requirements |
||
Product Performance
|
Project |
Typical Value |
Implementation Standards |
|
Tensile Strength |
≥1.0MPa |
GB/T 528-2009 |
|
Elongation at break |
≥800% |
GB/T 528-2009 |
|
Tensile strength retention after aging |
≥80% |
GB/T 528-2009 |
|
Retention rate of elongation at break after aging |
≥80% |
GB/T 528-2009 |
|
Self-adhesive |
Pass |
JB/T 6464-2006 |
|
Volume resistivity |
≤100Ω·cm |
GB/T 1692-2008 |
|
Allowable long-term operating temperature |
≤90℃ |
|
|
130℃ heat stress cracking resistance |
No cracking |
JB/T 6464-2006 |
|
Heat resistance (130℃*168h) |
No loosening, deformation, sagging, cracking, or surface bubbles |
JB/T 6464-2006 |
How to use

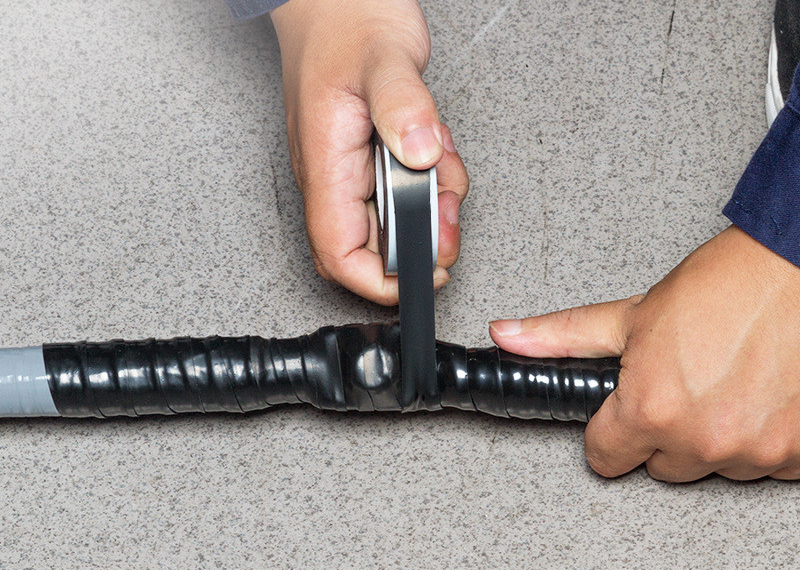

When using, first peel off the isolation film, stretch the tape by 200% to 300%, and wrap it continuously with half overlap until the required thickness is reached (be sure to wrap it with half overlap to ensure that the tape is evenly wound).
Certificate
Packaging&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your terms of packing?
A:Generally,we pack our goods in box.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authori- zation letters.
Q: How long is your delivery time?
A:If order quantity is small,then 7-10 days,Large quantity order 25-30 days.
Q:Can you provide a free sample?
A:Yes,1-2 pcs samples are free,but you pay the shipping charge.
You also can provide your DHL,TNT account number.
Q:How many workers you have?
A:We have 400 workers.
Q:How many production lines you have?
A:We have 200 production lines.
